Product Description
Pure/Mineral Water Production Line

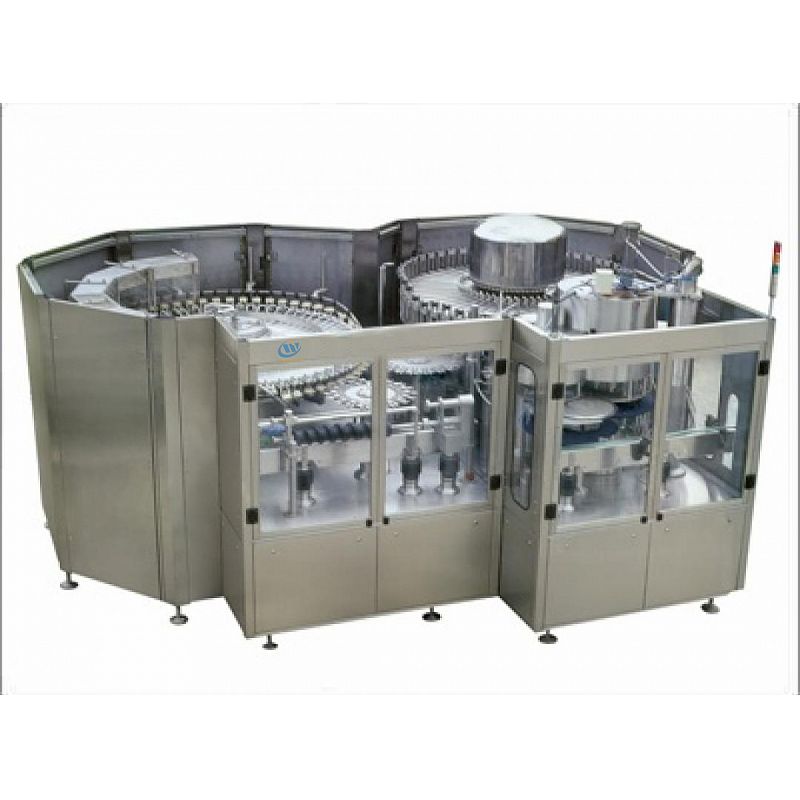

Derun washing-filling-capping 3-in-1 machine is a set of equipment with high precision and speed to fill liquid. It adopts bottle-neck block technology, not only avoiding second pollution to the bottle-neck, but also realizing filling different specs of bottles in one equipment, which greatly improved commonality of this equipment. Production capacity is 3000 bottles to 36000 bottles per hour. Main-frame machine adopts frequency controlling electric motor, which is much corwenient to adjust speed in scope of production capacity.
The Technical Parameter of the Pure/Mineral Water Production Line(Water Filling Machines):
Model | Washing heads | Filling heads | Capping heads | Production capacity (b/h) | Power of main motor (kw) |
DR16-12-6S | 16 | 12 | 6 | 3500 | 2.2 |
DR18-18-6S | 18 | 18 | 6 | 8000 | 3.5 |
DR24-24-8S | 24 | 24 | 8 | 12000 | 4.5 |
DR32-32-10S | 32 | 32 | 10 | 15000 | 5.5 |
DR40-40-10S | 40 | 40 | 10 | 18000 | 5.5 |
Main Features of those water filling machines:
• Adopting direct connection between air conveyor and inlet starwheel which is easier for bottle changing.
• Adopting clamp transferring technology. Bottle shapes are more varied, and the working table inside the machine is more laconic.
• With little abrasion, stable transferring, easy to change bottles.
• Stainless steel bottle clamp avoids a 2nd contamination.
• With high filling speed and exact fluid level.
• Excellent stainless steel or food level plastic to liquid. Electric system is of international brand and achieves national food sanitary standard.
• The bottle-out starwheel is of screwdown shape. No need to adjust transferring chain’s height to different bottles.
• Adopting clamp transferring technology. Bottle shapes are more varied, and the working table inside the machine is more laconic.
• With little abrasion, stable transferring, easy to change bottles.
• Stainless steel bottle clamp avoids a 2nd contamination.
• With high filling speed and exact fluid level.
• Excellent stainless steel or food level plastic to liquid. Electric system is of international brand and achieves national food sanitary standard.
• The bottle-out starwheel is of screwdown shape. No need to adjust transferring chain’s height to different bottles.
